STL11

About me

Sven Johannsen

• Software Developer
• Schlumberger (Petroleum Systems Modeling, Exploration Geology)
• 15+ Years professional C++ development
• Member of the C++ User Groups
  • NRW (Düsseldorf)
  • Aachen

Why

Why talking about the STL

Some coding styles generate less trouble

  double *fieldX = new double[fieldSize];
  double *fieldY = new double[fieldSize];
  double *fieldZ = new double[fieldSize];

  for (int i = 0; i < fieldSize; ++i)
  {
    //... fieldX[i] ...
  }

  // ...

  delete fieldX;
  delete fieldY;
  delete fieldZ;

  struct XYZ
  {
    double X;
    double Y;
    double Z;
  };

  // ...

  vector<XYZ> field(fieldSize);
  for (const auto& point : field)
  {
    // ... point.X ..
  }

  // no delete,...

Why talking about the new stuff in the STL

A short example for the erase-remove idiom

C++ 98/03

bool gt4(int i) { return 4 < i; }

vector<int> v; v.push_back(0); v.push_back(5); v.push_back(2); v.push_back(3);

// use the erase-remove idiom to remove all elements greater than 4 (=5)
v.erase(remove_if(v.begin(), v.end(), gt4), v.end());

v = vector<int>(v.begin(), v.end()); // free unused capacity

C++ 11

vector<int> v = { 0, 5, 2, 3, 4, 5, 6, 7, 8, 9 };

// use the erase-remove idiom to remove all elements greater than 4
v.erase(remove_if(begin(v), end(v), [](int i) { return 4 < i; }),end(v));

v.shrink_to_fit();        // free unused capacity

History (Standard Library incl. STL)

STL (Standard Template Library)

• Developed by Alexander Stepanow and Meng Leng at HP (1992) based on older ideas
• Part of the C++ Standard Library
• No official term (in the C++ Standard)
• Influenced other parts of the C++ Standard Library (e.g. string)
• Containers / Iterators / Algorithms

  // containers
  std::vector<int> v;
  std::list<int> l;

  // iterators
  auto start = v.begin();
  auto stop = v.end();

  // algorithms
  int sum = std::accumulate(start, stop, 0);

What's new in the STL?

C++11

• Initializer lists
• R-value references
• Container
  • 6 new container (1 post TR1)
  • some smaller enhancements
• Iterator
  • non-member begin and end (range access)
• Algorithms
  • Algorithms & new Language Features
  • New Algorithms

C++14

• Iterator (extended range access library)

What's new in the STL?

C++11

• Initializer lists
• R-value references
• Container
  • 6 new container (1 post TR1)
  • some smaller enhancements
• Iterator
  • non-member begin and end (range access)
• Algorithms * Algorithms & new Language Features * New Algorithms

C++14

• Iterator (extended range access library)

Uniformed initialization

Problem: Different syntaxes for initializing

    struct A { int i; int j; }; // POD
    struct B { B(int ii, int jj); /* ... */ }; // Class like struct

C++98

    A a = { 1, 3 };
    B b(1, 3);

C++11 Uniform initialization (N2532)

// Aggregates (e.g. arrays and structs):
A a1 = { 1, 3 }; // Initialize  members from begin-to-end
// Non-aggregates: Invoke a constructor.
B b1 = { 1, 3 };
// alternative syntax
A a2 { 1, 3 };
B b2 { 1, 3 };

Uniformed initialization for containers

C++98

int arr[] = {1, 2, 3};
vector<int> v;
v.push_back(1); v.push_back(2); v.push_back(3);

C++11

Initializer Lists (N2672)

#include <initializer_list>
template <class T> // ignoring allocators
class vector {
    // ...
    vector(initializer_list<T>);   // initializer list constructor
    //...
};
vector<int> vec1 = { 1, 2, 3 };
vector<int> vec2 { 11, 22, 33 };   // alternative syntax

Constructors

class vector {
    // ...
    vector();                            // default constructor
    vector(initializer_list<T>);   // initializer list constructor
    vector(size_type n, const T& value); // other constructor
    //...
};

vector<int> vec0 = { };        // vector::vector(); (default constructor)
vector<int> vec0 { };          // still default constructor
vector<int> vec1 = { 13, 17 }; // vector::vector(initializer_list<T>);
vector<int> vec2 { 19, 23 };   // alternative syntax
vector<int> vec3(10, -1);      // vector::vector(size_type n, const T& value);

STL & Initializer Lists

All STL containers support uniformed initialization

vector<int> v({ 2, 3, 5, 7, 11, 13, 17 });
list<int> l = { 0, 1, 2, 3, 4, 5, 6 };
map<int, string> m { { 1, "one" }, { 2, "two" } };
valarray<double> v = { 1.0, 0.1, 0.001, 0.0001 };
// same for deque, forward_list, set, string, regex
// unordered_map, unordered_set, multi_..
// but not for: queue, priority_queue and stack

// aggregate initialization:
array<double,4> a = { 1.0, 0.1, 0.001, 0.0001 };

and some algorithms too

• min, max, minmax
• some random devices (seed_seq, discrete_distribution, ...)

More than initialization

Most containers overload some additional member functions for initializer_list<T>.

vector<int> v = { -1, -2, -3 }; // v = -1, -2, -3
v = { 1, 2, 3 };                      // operator=() v = 1, 2, 3
v.insert(end(v), { 4, 5, 6 });        // v = 1,2,3,4,5,6
v.assign({ -1, -2, -3 });             // v = -1, -2, -3

• constructor, operator=, insert (all STL containers)
• assign (string, deque, forward_list, list, vector)
• append (string)
• replace (string)
• operator+= (string)

(All STL containers = { string, deque, forward_list (insert_after()), list, vector, map, multimap, set, multiset, unordered_map, unordered_multimap, unordered_set, unordered_multiset })

Class initializer_list

#include <initializer_list>
...
template<class E> class initializer_list {
public:
  // some typedefs
  initializer_list() noexcept;     // default constructor
  size_t size() const noexcept;    // number of elements
  const E* begin() const noexcept; // first element
  const E* end() const noexcept;   // one past the last element
};

Only the compiler should fill the Initializer Lists.

initializer_list<string> strings = { "C++", "is", "cool!" };

Using the Initializer lists

Using the class initializer_list in user defined containers

template<class T>
MyVector<T>::MyVector(initializer_list<T> i_list)
{
    reserve(i_list.size());
    for(const auto iter = i_list.begin(); iter != i_list.end(); ++iter)
          push_back(*elem);
  // for(const auto& T elem : i_list)
  //      push_back(elem);
  // for(auto&& T elem : i_list)
  //    push_back(elem);
}
// usage
MyVector<int> v = { 2, 3, 5, 7 };

Compile time container

initializer_list is not limited to container

void print_some_doubles(initializer_list<double> doubles)
{
    for(double d : doubles)
        cout << d << " ";
}
...
print_some_doubles({ 1, 2, 3 });

Examples: std::min, std::max, minmax and some random devices (seed_seq, discrete_distribution, ...)

What's new in the STL?

C++11

• Initializer lists
• R-value references
• Container
  • 6 new container (1 post TR1)
  • some smaller enhancements
• Iterator
  • non-member begin and end (range access)
• Algorithms
  • Algorithms & new Language Features
  • New Algorithms

C++14

• Iterator (extended range access library)

R-Value References support in the STL

Problem: Performance!

Copy semantic can result in performance issues.

vector<string> v;
v.push_back("C++");
v.push_back("Boost");
// Hint: emplace_back beats move semantic

Move Semantic

C++11 introduce move semantic into the language to reduce the number of new / delete calls in the case of temporary objects

• Move Semantic
• Detection of temporary objects
• Reduce the number of new / delete calls

Temporary objects

Temporary objects ("objects without a name"):

• implicit conversions
• function return values
• nested operations (a+b+c)

    void foo(std::string& s) { string text; ...; text = s; ...; }
    std::string bar() { string s; ... return s; }

    foo("Converted to a std::string");
    string t = bar();
    string s = bar() + " and  " + " copied!";

Move Semantic

How to move?

1. Detect temporary objects (r-values)

       basic_string& operator=(const basic_string& str);     // l-value reference
       basic_string& operator=(basic_string&& str) noexcept; // r-value reference


2. Steal the content from the temporary object
3. Bring the temporary objects in a stable state

Designed for objects which uses of dynamic memory, like STL containers

Looks like moving the objects, but only the content is moving

STL: R-Value References everywhere

Additional overloads for r-value references

E.g. std::vector:

• constructors vector(vector&&);
• assignment operator= (vector<T,Allocator>&& );
• add void push_back(T&& x);
• insert insert(const_iterator position, T&& x);

string text("C++");
vector<string> v;

v.push_back(text);  // copy "C++"
v.push_back("explore the boost library!"); // create a temp. string object

STL overloads many functions for improving the performance.
E.g. 12 different operator+() for the combination of string&, string&& and char*

Enforce moving

The C++ and the STL "moves" only temporary objects ("objects without a name")

To move non-temporary objects, use std::move() to mark an object as r-value reference.

vector<int> temp = { 1, 2, 3 };
vector<int> result = { };

result = std::move(temp);    // calls operator=(vector<int>&&)
//result = static_cast<vector<int>&& >(temp);

assert(temp.size() == 0);
assert(result.size() == 3);
assert(result[0] == 1 && result[1] == 2 && result[2] == 3);

Move non-copyable objects

Examples:

• file streams (ifstream, ofstream)
• unique_ptr (non copyable smart pointers)

ifstream open_file(const string& filename) { ... }
unique_ptr<MyDocument> document_factory(Param param) { ... }

vector<unique_ptr<MyDocument>> documents;
documents.push_back(document_factory(param));

Emplace

(deque, list, vector, priority_queue)

Construct an element in the container. Forward all parameters to the constructor.

template <class... Args>
void emplace_back(Args&&... args);

template <class... Args>
iterator emplace(const_iterator position, Args&&... args);

Example:

vector<string> field = { " " }; // init. list with one element " "
field.emplace_back("C++");
char* text = "Hallo Fortran";
field.emplace(field.begin(), text, text+5);
// field == "Hello", " ", "C++"

Containers

TR1

• array
• 4 Unordered associative containers (hash tables)
  unordered_map, unordered_multimap, unordered_set, unordered_multiset

C++ 11

• forward_list

Changes for exiting containers

• cbegin() & cend()
• shrink_to_fit()
• data()
• map::at()

array

As efficient as a "C style" array, but with the interface of a STL container

• compile time size
• lives at the stack (or with the object)
• most efficient container (for fixes sizes)

int field[3] = { 1, 2, 3 };
array<int, 3> arr = { 1, 2, 3 };
cout << "size : " << arr.size() << endl;
for (auto it = arr.begin(); it != arr.end(); ++it)
  cout << *it << " ";
cout << endl;

array

template <class T, size_t N>
struct array {
  // some typedefs
  // no constructor, no operator=() !
  void fill(const T& u);
  iterator begin() noexcept;
  iterator end() noexcept;
  // rbegin(), rend(), cbegin(), cend(), crbegin(), crend()
  constexpr size_type size() noexcept; // max_size, empty
  reference operator[](size_type n);
  reference at(size_type n);
  reference front();
  reference back();
  T* data() noexcept;
  // plus const functions
};

Examples

array<int, 3> arr {}; // zero initialization
arr.fill(-11);
for (auto i : arr)
  assert(i == -11);
iota(arr.begin(), arr.end(), 1);
// { 1, 2, 3 }
int i = arr[0];
int j = arr.at(1);
int k = arr.back(); // last element
assert(i = 1 && j == 2 && k == 3);
int l = arr.at(10); // throw an "out of range" exception

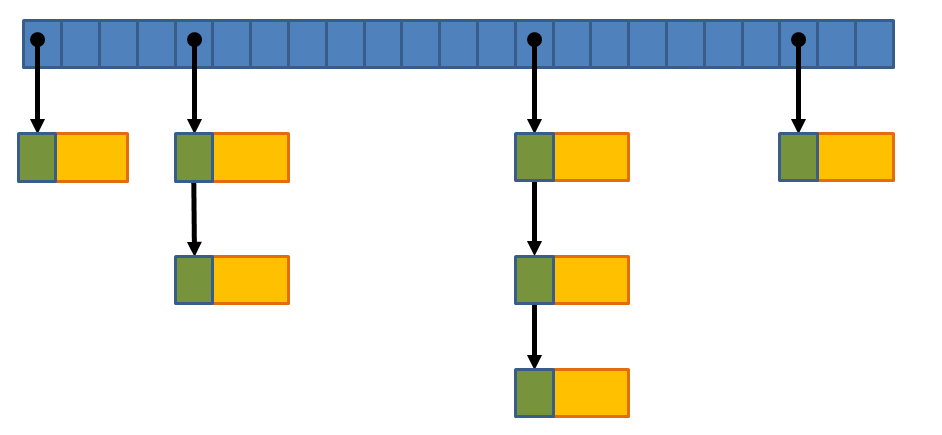

Unordered associative containers

4 new hash_maps (associative containers):

• unordered_map,
• unordered_multimap,
• unordered_set and
• unordered_multiset.

Similar to map, multimap, set and unordered_multiset, with different requirements for the key and different storage. The naming tries to avoid breaking existing code.

Unordered associative containers

replacement

map<string, int> index = { { "C++", 1 }, { "Boost", 42 } };
unordered_map<string, int> fast_index = { { "C++", 1 }, { "Boost", 42 } };

Unordered associative containers

Different requirement for the key

map<string, int> index;
// same as:
map<string, int, less<string>> index; // less call operator<()

class Person; // without operator<();
struct PersonLess {
  bool operator()(const Person& l, const Person& r)
  {
    return l.Name() < r.Name();
  }
};

map<Person, Account, PersonLess> AccountInfo;

Unordered associative containers

Requirements for the key

unordered_map<string, int> fast_index;
// same as:
unordered_map<string, int, hash<string>, equal_to<string>> fast_index;

struct PersonHash // Hash function
{
  size_t operator()(const Person& p)
  {
    return hash<string>()(p.Name());
  }
};
struct PersonEquality // for the case of collisions
{
  bool operator()(const Person& l, const Person& r)
  {
    return l.Name() == r.Name();
  }
};

unordered_map<Person, Account, PersonHash, PersonEquality> FastAccountInfo;

Unordered associative containers

Predefined hash functions

Hash functions are available for

• build-ins (bool, int, float, T*, ...),
• strings, (std::string, std::wstring)
• smart pointers,
• std::vector<bool>,
• std::bitset,
• std::thread::id,
• std::error_code,
• std::type_index

Unordered associative containers

bucket interface & hash policy

// bucket interface
size_t bucket_count() const noexcept;
size_t bucket_size(size_type n) const;
size_t bucket(const key_type& k) const;
// hash policy
float load_factor() const noexcept;
float max_load_factor() const noexcept;
void max_load_factor(float z);
void rehash(size_t n);

forward_list

Minimal list implementation, which avoid expensive operations (e.g. back()).

• only forward iteration
• many *_after() functions
• no access to the end: back(), push_back(), ...
• no size() function
• simple end()

forward_list

template <class T, class Allocator = allocator<T> >
class forward_list {
public:
// some typedefs
  explicit forward_list(); // 9 constructors
  forward_list& operator=(initializer_list<T>); // +3
  iterator begin() noexcept;
  iterator end() noexcept; // + cbegin, ... but no rbegin()
  bool empty() const noexcept; // no size()
  void push_front(const T& x);
  void pop_front();
  iterator insert_after(const_iterator position, const T& x); // + 5
  // ...
  void sort();
  void reverse() noexcept;
};

insert_after()

STL container member functions like insert() need the access to the prior element.

• insert_after()
• erase_after()
• splice_after()

Further Changes for exiting containers (a)

const_iterator

cbegin, cend, crbegin, crend

const_iterator cbegin() const noexcept;
const_iterator cend() const noexcept;

Better control of the used iterator type

void foo(const vector<int>& cv, vector<int>& ncv)
{ // C++98
  for (vector<int>::const_iterator it1 = cv.begin();  it != cv.end();  ++it) {}
  for (vector<int>::const_iterator it2 = ncv.begin(); it != ncv.end(); ++it) {}
  // C++11
  for (auto it = cv.begin();   it1 != cv.end();   ++it) {} // const_iterator
  for (auto it = ncv.begin();  it2 != ncv.end();  ++it) {} // iterator
  for (auto it = ncv.cbegin(); it3 != ncv.cend(); ++it) {} // const_iterator

Further Changes for exiting containers (b)

capacity

(string, deque, vector)

void shrink_to_fit();

Ask for reducing capacity() to size().

Example:

// free unused capacity with a temp. object
vector<int> tmp(v.begin(), v.end());
v.swap(tmp);
// free unused capacity
v.shrink_to_fit();

Further Changes for exiting containers (c)

data access

(vector, array)

T* data() noexcept;
const T* data() const noexcept;

The address of the first element, or NULL.

Example:

vector<BYTE> field = ...;
legacy_function(BYTE* raw_data, int size);
...
// C++98: address of the first element
legacy_function(field.empty() ? NULL : &field[0], field.size());
legacy_function(field.empty() ? NULL : &field.front(), field.size());
// C++11 use data
legacy_function(field.data(), field.size());

Further Changes for exiting containers (d)

map::at()

Element access with range check (throws, if the key is not present).

map<string, int> cont;
int val;
// C++ 98
val = cont["key"]; //(1)  may add a default value to the map
auto it = cont.find("key");
if(it != cont.end()) //(2)
    val = it->second;
// C++11
val = map.at("key"); //(3) throws "out_of_range", if key not present

What's new in the STL?

C++11

• Initializer lists
• R-value references
• Container
  • 6 new container (1 post TR1)
  • some smaller enhancements
• Iterator
  • non-member begin and end (range access)
• Algorithms
  • Algorithms & new Language Features
  • New Algorithms

C++14

• Iterator (extended range access library)

Differences between Container and Range

Container

begin() and end() member functions

auto it1 = cont.begin();
auto it2 = cont.end();

e.g. std::vector, std::list, std::map

Range

non member begin() and end() functions

auto it1 = begin(cont);
auto it2 = end(cont);

e.g. std::vector, std::list, std::map, double[10]

Non Member begin() and end()

Unified iterator access for any container

Addition level of abstraction for an iterator access.

    // vector<int> cont = { ... };
    // int cont[] = { ... };

    for(auto it = begin(cont); it != end(cont); ++it)
    {
        cout << *it << " ";
    }

This code runs with any container (if non-member begin() and end() are overloaded).

C++14 will also introduce non-member cbegin, cend, rbegin, rend, crbegin and crend.

Extend the Range

E.g.: Range based for loop for non STL containers

template<class T> CArrayIterator<T> begin(const CArray<T>& arr);
template<class T> CArrayIterator<T> end(const CArray<T>& arr);

...
CArray<int> arr;
...
for(int i : arr)
{
    cout << i << " " << endl;
}

bool sorted = std::is_sorted(begin(arr), end(arr));

What's new in the STL?

C++11

• Initializer lists
• R-value references
• Container
  • 6 new container (1 post TR1)
  • some smaller enhancements
• Iterator
  • non-member begin and end (range access)
• Algorithms
  • Algorithms & new Language Features
  • New Algorithms

C++14

• Iterator (extended range access library)

Algorithms & new Language Features

STL algorithms are unchanged, because the new C++11 language features (Lambdas, std::function) are designed for the STL algorithms!

void print_func(int i) { cout << i << ' '; }
struct PrintFunctor { void operator()(int i); };
function<void(int)> f1 = print_func;
function<void(int)> f2 = [](int i) { cout << i << ' '; };

vector<int> v = { 1, 2, 3, 4, 5 };

for_each(begin(v), end(v), print_func);
for_each(begin(v), end(v), PrintFunctor());
for_each(begin(v), end(v), [](int i) { cout << i << ' '; });
for_each(begin(v), end(v), f1);
for_each(begin(v), end(v), f2);

New Algorithms

R is a range, e is an element, p is a predicate.

(note: use <numeric> for iota)

New Algorithms (examples)

iota

vector<int> v(10); // 0 0 0 0 0 0 0 0 0 0
iota(begin(v), end(v), 10); // 10 11 12 13 14 15 16 17 18 19

string s; s.resize(26);
iota(begin(s), end(s), 'a'); // a b c d e f g h i j k l m n o p q r s t u v w x y z

all_of, any_of, none_of, is_sorted, minmax

vector<int> v { 13, 15, 19, 3 };

bool b1 = all_of(begin(v), end(v), [](int i){ return i % 2; }); // true
bool b2 = any_of(begin(v), end(v), [](int i){ return i < 0; }); // false
bool b3 = none_of(begin(v), end(v), [](int i){ return i < 0; }); // true
bool b4 = is_sorted(begin(v), end(v)); // false

auto minmax_iter = minmax_element(begin(v), end(v)); // { iterator->min, iterator->max }
pair<int,int> minmax_val = minmax(19, 3);

assert(*minmax_iter.first == 3 && *minmax_iter.second == 19);
assert(minmax_val.first == 3 && minmax_val.second == 19);

Deprecated

STL:

• auto_ptr (use unique_ptr)
• Function object base classes unary_function, binary_function, ptr_fun, mem_fun,... (use function and mem_fn)
• bind1st, bind2nd (use bind or lambda instead)

Questions

Appendix

A1. CArray Iterator

template<typename T>
class CArrayIterator
{
  const CArray<typename T>* cont_;
  int index_ = 0;

public:
  typedef std::input_iterator_tag iterator_category;
  typedef typename T value_type;
  typedef int difference_type;
  typedef typename T* pointer;
  typedef typename T& reference;

  CArrayIterator(const CArray<T>& cont, int index) : cont_(&cont), index_(index) {}
  T operator*() { return (*cont_)[index_]; }
  CArrayIterator& operator++() { index_++; return *this; }
  bool operator!=(const CArrayIterator& other) { return cont_ != other.cont_ || index_ != other.index_; }
  bool operator==(const CArrayIterator& other) { return !(*this != other); }
};

A2. CArray Range Access

template<typename T>
CArrayIterator<T> begin(const CArray<T>& cont)
{
  return CArrayIterator<T>(cont, 0);
}

template<typename T>
CArrayIterator<T> end(const CArray<T>& cont)
{
  return CArrayIterator<T>(cont, cont.GetSize());
}

A3. STL & CArray

Examples

CArray<int> cont;
cont.Add(1); cont.Add(3); cont.Add(5); cont.Add(2);

for (auto it = begin(cont); it != end(cont); ++it) {
  cout << *it << ' ';
}
cout << endl;

for (int i : cont) {
  cout << i << ' ';
}
cout << endl;

for_each(begin(cont), end(cont), [](int i) {
  cout << i << ' ';
});
cout << endl;

vector<int> v(begin(cont), end(cont));
for (int i : v) {
  cout << i << ' ';
}
cout << endl;
